Astronomic 365-Day 8-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, 8-SPDT/4-DPDT, Outdoor Metal Enclosure, Ethernet Included

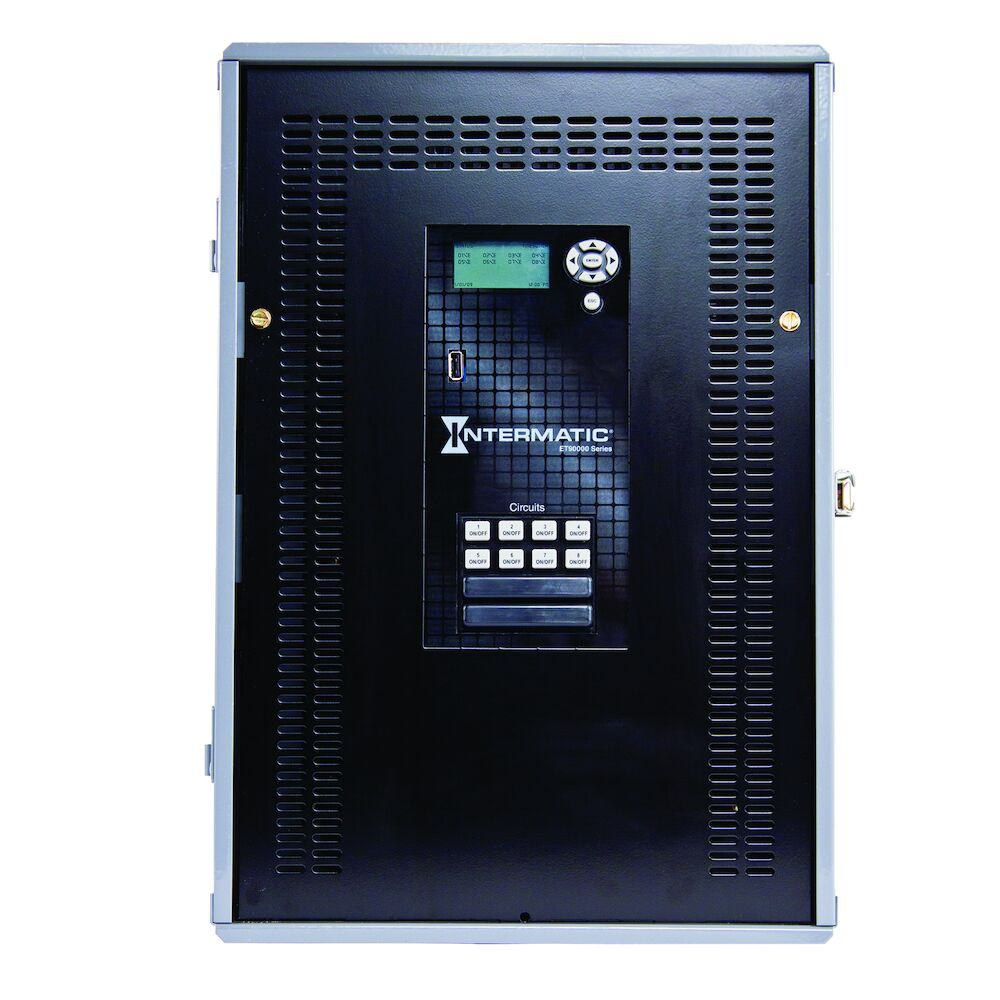

Astronomic 365-Day 8-Circuit Electronic Control – ET90815CR by Intermatic

The Astronomic 365-Day 8-Circuit Electronic Control from Intermatic is a robust outdoor metal-enclosed electronic timer designed for precise and flexible scheduling of lighting and electrical applications. Suitable for electrical distributors and lighting solutions providers, this control unit offers advanced scheduling capabilities including holiday and astronomic event tracking, making it ideal for wire and cable management in lighting control and switchgear supplier applications. The unit supports real-time remote control via PC and mobile apps, with USB and Ethernet connectivity enabling in-field updates and programming.

Specifications

• Model Number: ET90815CR
• Input Voltage Range: 120-277 VAC, 50/60 Hz
• Number of Circuits: 8
• Switch Type: 8x SPDT, 4x DPDT
• Maximum Power Consumption: 50 W
• Enclosure Type: Outdoor Metal Enclosure, Type 3R
• Dimensions (HxWxD): 17.9 in x 12.7 in x 5.4 in
• Operating Temperature Range: -40 ¬∞F to 104 ¬∞F (-40 ¬∞C to 40 ¬∞C)
• Contact Ratings:
  • General Purpose NO: 30 A @ 12-240 VAC
  • General Purpose NC: 10 A @ 12-240 VAC
  • Resistive NO: 20 A @ 28 VDC; 30 A @ 12-240 VAC
  • Resistive NC: 10 A @ 28 VDC; 10 A @ 12-240 VAC
  • Magnetic Ballast NO: 20 A @ 120-277 VAC
  • Magnetic Ballast NC: 3 A @ 120-277 VAC
  • Electronic Ballast NO: 8 A @ 120-277 VAC
  • Tungsten NO: 5 A @ 12-120 VAC
  • Motor NO: 1 HP @ 120 VAC, 2 HP @ 240 VAC
  • Motor NC: 1/4 HP @ 120 VAC, 1/2 HP @ 240 VAC
  • Pilot Duty NO: 470 VA @ 120-240 VAC
  • Pilot Duty NC: 275 VA @ 120-240 VAC
• Minimum ON/OFF Time: 1 second
• Maximum ON/OFF Time: 365 days
• Maximum Pulse Time: 23 hours 59 minutes
• Maximum ON/OFF Operations: 2000
• Data Transfer Options: USB and Ethernet
• Backup Type: 100-hour supercapacitor (battery-free)
• Certifications: UL (cULus), CSA (cCSAus), Title 20 compliant, California Proposition 65 (Lead)
• Country of Origin: Mexico
• Warranty: 3-year limited
• Shipping Weight: 20.557 lbs

Features

• Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
• Supports over 2,000 events plus holiday schedules with advanced relative date scheduling (e.g., fourth Thursday of November)
• 100-hour supercapacitor backup eliminates the need for batteries
• USB port for easy uploading, downloading, and transferring of programs
• Firmware upgradeable in-field via USB or Ethernet
• Intuitive on-screen menus enable programming to the minute
• Non-volatile memory retains programming indefinitely
• Expandable in 4-circuit increments up to 16 circuits for compatible models
• Real-time remote control via PC and Mobile Apps
• Automatic daylight savings adjustment
• Designed for indoor and outdoor lighting control, timing/scheduling ON/OFF, and machinery & pump controls
