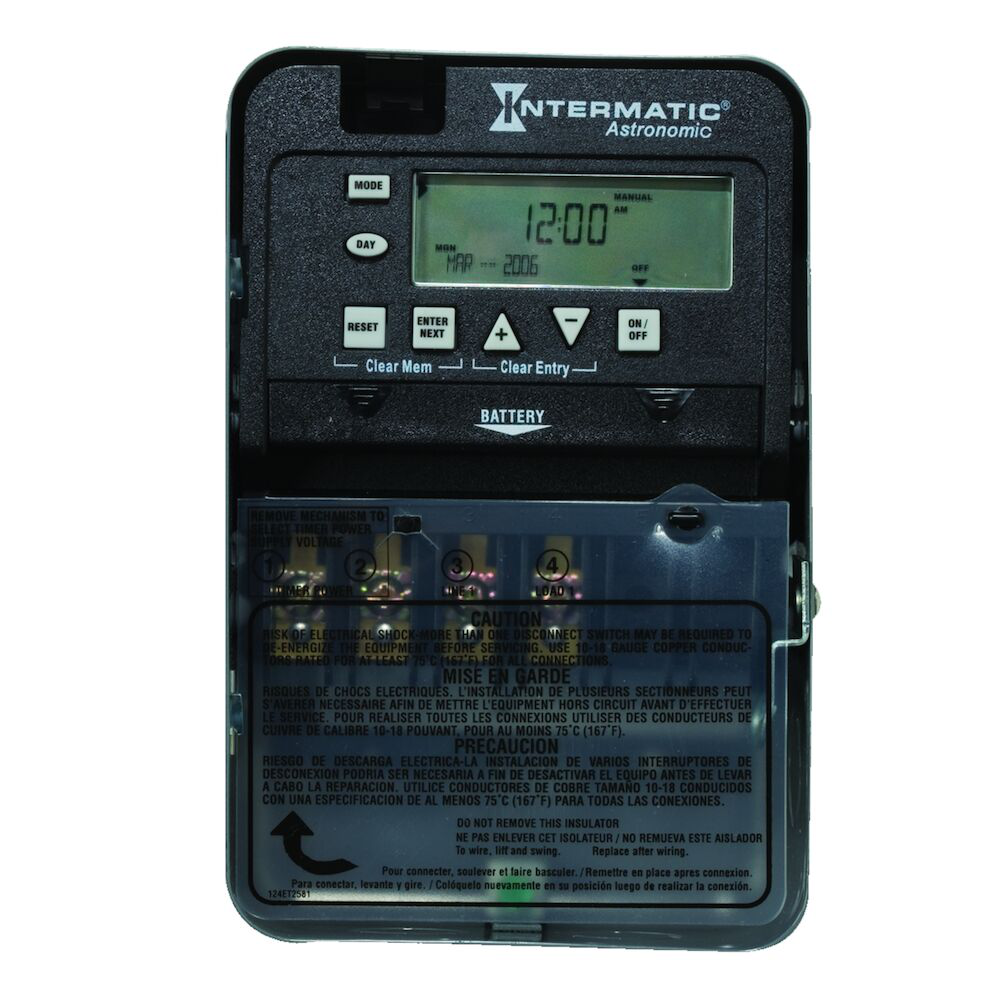

Astronomic 7-Day 1-Circuit Electronic Control, 120-277 VAC, SPST, Indoor Metal Enclosure

Astronomic 7-Day 1-Circuit Electronic Control by Intermatic – Electronic Time Switch

The Intermatic Astronomic 7-Day 1-Circuit Electronic Control (Model ET8015C) is a precision electronic time switch designed for indoor applications in a metal enclosure. It provides advanced lighting control with astronomic programming that automatically adjusts ON/OFF times based on local sunset and sunrise times, eliminating the need for separate photo control devices. Ideal for electrical distributors and lighting solutions providers, this device supports up to 28 events per week and is suitable for controlling tungsten, ballast, inductive, or resistive loads up to 30A at 120-277 VAC.

Specifications

• Manufacturer: Intermatic
• Manufacturer Part #: ET8015C
• Input Voltage: 120-277 VAC, 60 Hz
• Contact Configuration: Single Pole Single Throw (SPST)
• Number of Circuits: 1
• Switch Ratings: 30 A Inductive/Resistive at 120/240 VAC, 20 A Magnetic Ballast 120-277 VAC, 1 A Electronic Ballast 120-277 VAC, 5 A Tungsten 120/240 VAC
• Programming: Up to 14 ON and 14 OFF timed events per day plus astronomic ON/OFF events
• Operating Temperature Range: -40¬∞C to 40.0¬∞C (-40¬∞F to 104¬∞F)
• Dimensions: Height 7.875 in, Depth 3.437 in
• Material: Metal enclosure
• Color: Gray
• Power Backup: Battery powered clock operation with 3-year minimum life (2 AAA industrial alkaline batteries included)
• Enclosure Type: Indoor, Type 1 metal enclosure
• Weight: 2.84 lbs
• Country of Origin: China

Features

• Up-to-the-minute programming accuracy with 7-day independent scheduling
• Astronomic feature for automatic adjustment to local sunset and sunrise times
• Battery backup ensures clock operation and program retention during power outages
• Automatic daylight saving time correction without user intervention
• Supports manual override for ON/OFF control
• Designed for direct switching of tungsten and ballast loads up to rated amperage
• Installation flexibility with multiple knockout sizes and standard wiring using #18-#10 AWG copper conductors
• Complies with national and local electrical codes for safe installation
