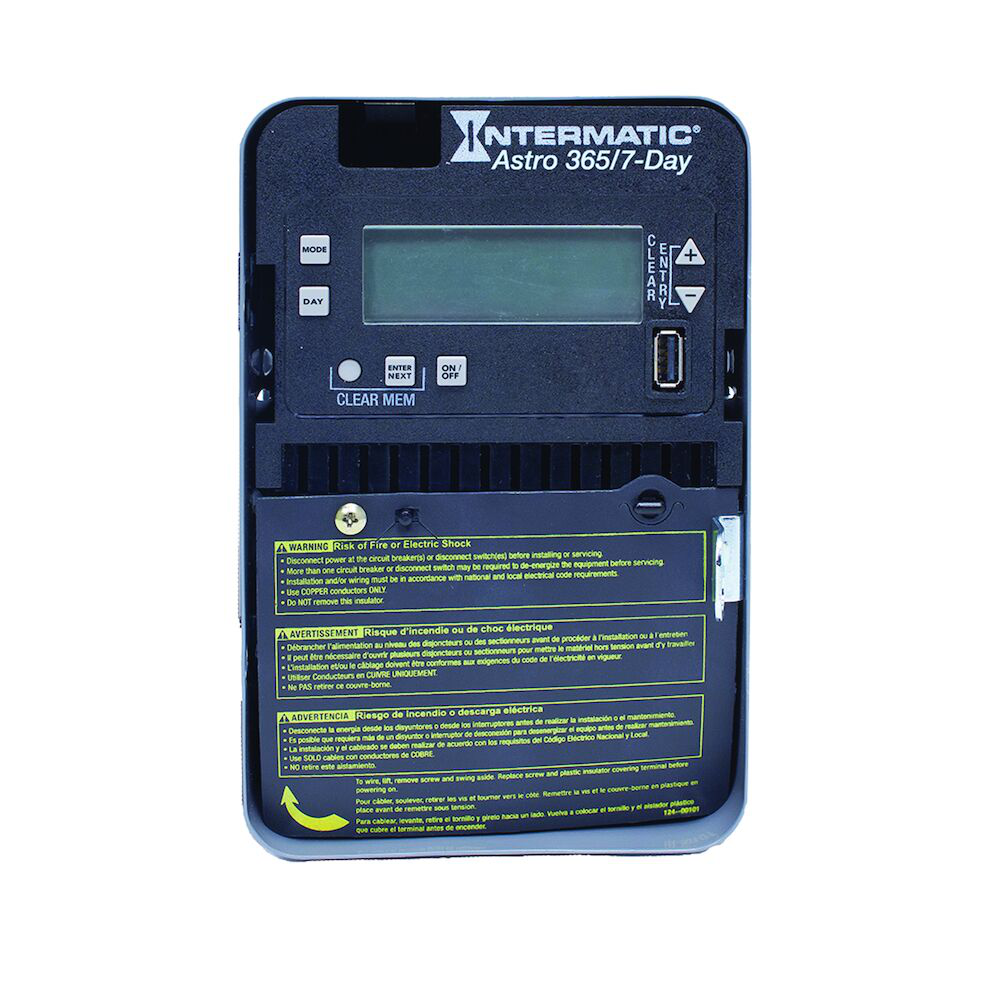

Astronomic 7-Day/365 Day 1-Circuit Electronic Control, 120-277 VAC, SPDT, Indoor Metal Enclosure

Astronomic 7-Day/365 Day 1-Circuit Electronic Control - Electronic Timer Control

The Astronomic 7-Day/365 Day 1-Circuit Electronic Control by Intermatic is designed for precise, programmable electrical load control in indoor environments. This timer control supports advanced scheduling with up to 96 ON/OFF events and 50 holiday blocks, making it suitable for a wide range of applications including lighting solutions, machinery, and pump controls. Its automatic voltage selection from 120 to 277 VAC and SPDT switch configuration ensure compatibility with diverse electrical systems. Ideal for electrical distributors and switchgear suppliers looking for reliable timing devices with supercapacitor backup and LED compatibility.

Specifications

• Model Number: ET2815C
• Input Voltage: 120-277 VAC, 60 Hz
• Power Consumption: 3 W MAX
• Switch Configuration: SPDT x 1
• Number of Circuits: 1
• Operating Temperature Range: -40 ¬∞F to 104 ¬∞F (-40 ¬∞C to 40 ¬∞C)
• Backup Type: 100-hour Supercapacitor
• Minimum ON/OFF Time: 1 minute
• Maximum ON/OFF Time: Indefinite
• Maximum ON/OFF Operations: 96 events
• Dimensions (H x W x D): 7.875 x 5.125 x 3.4375 inches
• Wire Size: #14 AWG minimum, #8 AWG maximum
• Enclosure: Indoor Type 1 Metal Enclosure
• Country of Origin: Mexico
• UL Certification: cULus
• Other Certifications: LED compatible, California Proposition 65 compliant
• Shipping Weight: 2.75 lbs

Features

• 100-hour supercapacitor backup eliminates the need for batteries
• Supports up to 96 set points or events and 50 holiday scheduling blocks
• Automatic input voltage selection from 120 to 277 VAC
• Additional operating mode converts ON/OFF buttons to 2-hour overrides
• Configurable outputs for control of various voltages and applications
• Relays with zero-crossing technology to extend device life
• Non-volatile EEPROM memory protects programming indefinitely
• LED compatible for modern lighting solutions
• USB port for easy transferring and saving of schedules
• 2-year limited warranty
