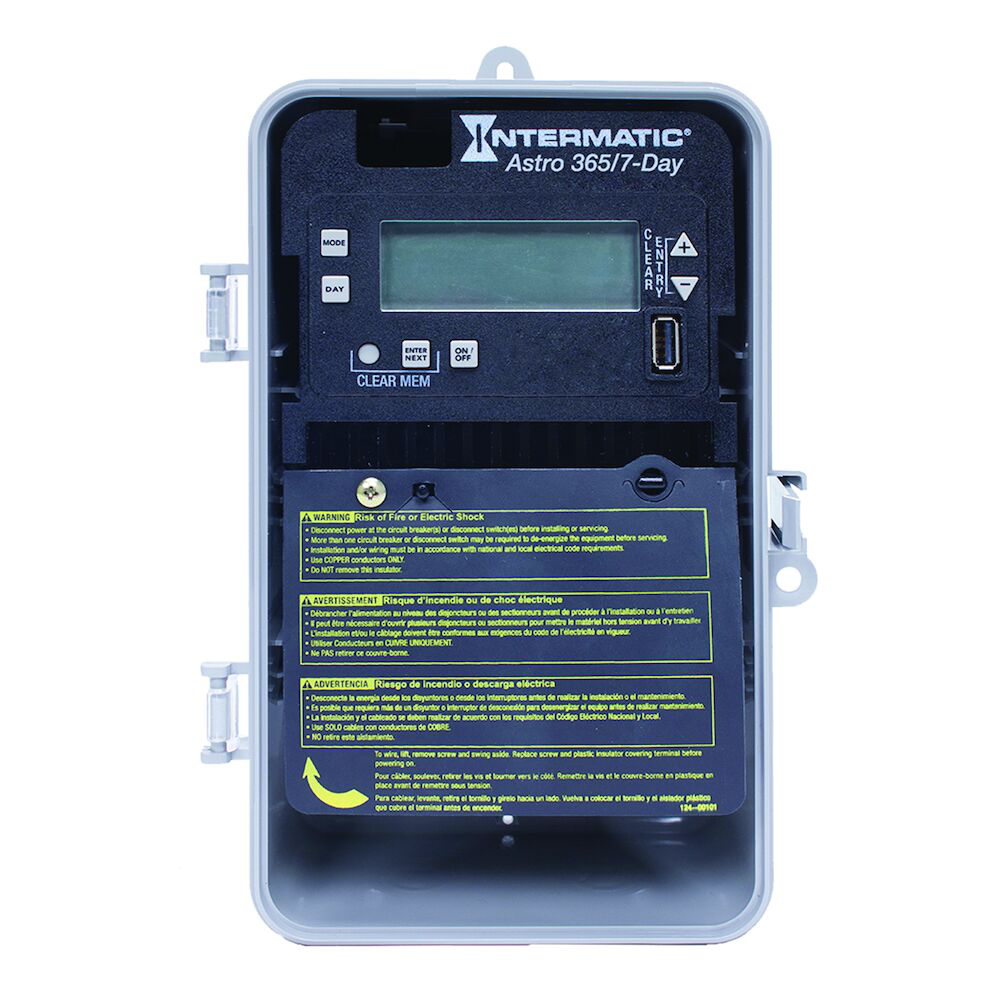

Astronomic 7-Day/365 Day 1-Circuit Electronic Control, 120-277 VAC, SPST, Indoor/Outdoor Plastic Enclosure

Astronomic 7-Day/365 Day 1-Circuit Electronic Control - Electronic Timer Control

The Intermatic Astronomic 7-Day/365 Day 1-Circuit Electronic Control (Model ET2805CP) is designed for precise scheduling and control of electrical loads in various applications. This timer control supports up to 96 ON/OFF events and 50 holiday blocks, enabling complex timing schedules for outdoor lighting control, machinery, and pump operations. Featuring an easy-to-use interface with automatic voltage selection from 120 to 277 VAC, this unit is suitable for indoor and outdoor use with a durable plastic enclosure. It incorporates a 100-hour supercapacitor backup, eliminating the need for batteries, and is compatible with LED loads. This device is ideal for electrical distributors and lighting solutions providers requiring reliable and configurable wire and cable timing controls.

Specifications

• Model Number: ET2805CP
• Input Voltage Range: 120-277 VAC, 60 Hz
• Switch Type: SPST, 1 Circuit
• Maximum Power Consumption: 3 W
• Number of ON/OFF Events: 96
• Holiday Blocks: 50
• Minimum ON/OFF Time: 1 minute
• Maximum ON/OFF Time: Indefinite
• Backup Type: 100-hour Supercapacitor
• Wire Size Range: #14 AWG to #8 AWG Copper
• Enclosure Type: Indoor/Outdoor Type 3R Plastic with See-Through Door
• Dimensions (H x W x D): 10 x 6.5 x 4 inches
• Operating Temperature Range: -40 ¬∞F to 104 ¬∞F (-40 ¬∞C to 40 ¬∞C)
• Load Ratings: 30 A Resistive (120-240 VAC), 20 A Resistive (28 VDC), 30 A Inductive (120-240 VAC), 20 A Magnetic Ballast (120-277 VAC), 10 A Electronic Ballast (120/277 VAC), 5 A Tungsten (120-277 VAC), 1 HP Motor (120 VAC), 2 HP Motor (240 VAC)
• Country of Origin: Mexico
• UPC Code: 078275148222
• Certifications: cULus, LED compatible, California Proposition 65 (Lead)
• Shipping Weight: 2.25 lbs

Features

• 100-hour supercapacitor backup eliminates the need for batteries
• Supports up to 96 programmable ON/OFF events and 50 holiday blocks
• Automatic input voltage selection from 120 to 277 VAC
• Additional operation mode converts ON/OFF buttons to 2-hour overrides
• Configurable outputs support various voltages and applications
• Relays use zero-crossing technology to extend control life
• Non-volatile EEPROM memory protects programming indefinitely
• LED compatible for modern lighting solutions
• USB port facilitates easy schedule transferring and saving
• Durable indoor/outdoor plastic enclosure with see-through door for protection and easy monitoring
• 2-year limited manufacturer warranty
