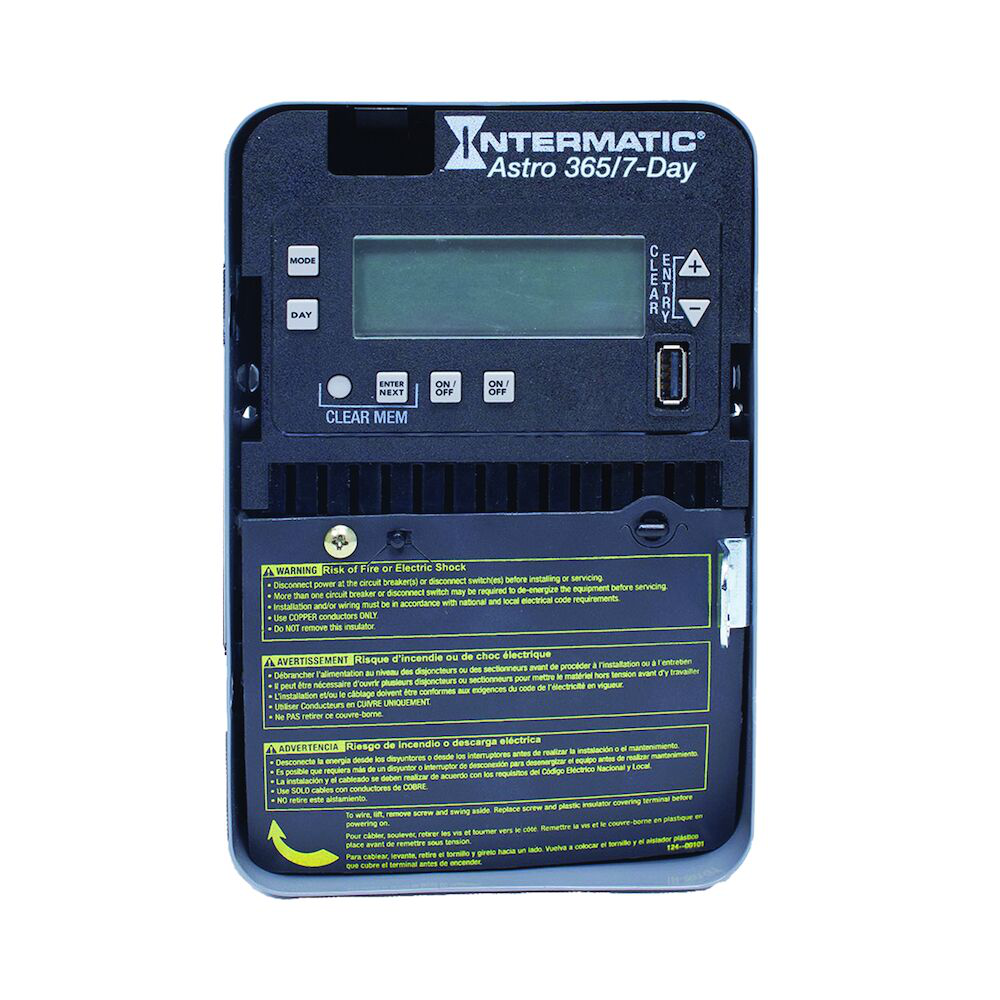

Astronomic 7-Day/365 Day 2-Circuit Electronic Control, 120-277 VAC, 2-SPST/DPST, Indoor Metal Enclosure

Astronomic 7-Day/365 Day 2-Circuit Electronic Control – Electronic Timer Control

The Intermatic Astronomic 7-Day/365 Day 2-Circuit Electronic Control (Model ET2825C) offers precise scheduling capabilities with an easy-to-use interface, designed for a wide range of electrical applications. This indoor metal enclosure timer supports up to 96 ON/OFF events and 50 holiday blocks with independent scheduling, making it suitable for lighting solutions, machinery, and pump controls. Its automatic input voltage selection accommodates 120 to 277 VAC, ensuring compatibility with various electrical systems. The device features a 100-hour supercapacitor backup, eliminating the need for batteries and providing reliable operation during power interruptions. Ideal for electrical distributors and switchgear suppliers requiring versatile, programmable control for wire and cable installations and load management.

Specifications

• Manufacturer Part #: ET2825C
• Input Voltage: 120-277 VAC, 60 Hz
• Power Consumption: 5 W max
• Number of Circuits: 2
• Switch Configuration: 2x SPST or 1x DPST or Pulse
• Maximum ON/OFF Operations: 96
• Minimum ON/OFF Time: 1 minute
• Maximum ON/OFF Time: Indefinite
• Backup Type: 100-hour supercapacitor
• Operating Temperature Range: -40 °C to 40 °C (-40 °F to 104 °F)
• Enclosure Type: Indoor type 1 metal
• Dimensions (H x W x D): 7.875 x 5.125 x 3.437 inches
• Wire Size Range: AWG #14 to #8
• Load Ratings:
  • Resistive: 20 A, 120-240 VAC; 28 VDC
  • Inductive: 30 A, 120-240 VAC
  • Magnetic Ballast: 20 A, 120-277 VAC
  • Electronic Ballast: 10 A, 120/277 VAC
  • Tungsten: 5 A, 120-277 VAC
  • Motor: 1 HP at 120 VAC; 2 HP at 240 VAC
• Country of Origin: Mexico
• Weight: 2.75 lbs
• Certifications: cULus, LED compatible

Features

• 100-hour supercapacitor backup eliminates battery replacement
• Supports up to 96 set points or events for complex scheduling
• 50 holiday blocks with independent scheduling to maintain proper load control
• Automatic input voltage selection from 120 to 277 VAC
• Additional mode converts ON/OFF buttons into 2-hour manual overrides
• Configurable outputs for controlling various voltages and applications
• Relays with zero-crossing technology to extend device lifespan
• Non-volatile EEPROM memory retains programming indefinitely
• LED compatible for efficient lighting control
• USB port for easy transferring and saving of schedules
• Automatic daylight savings adjustment
• 2-year limited warranty
