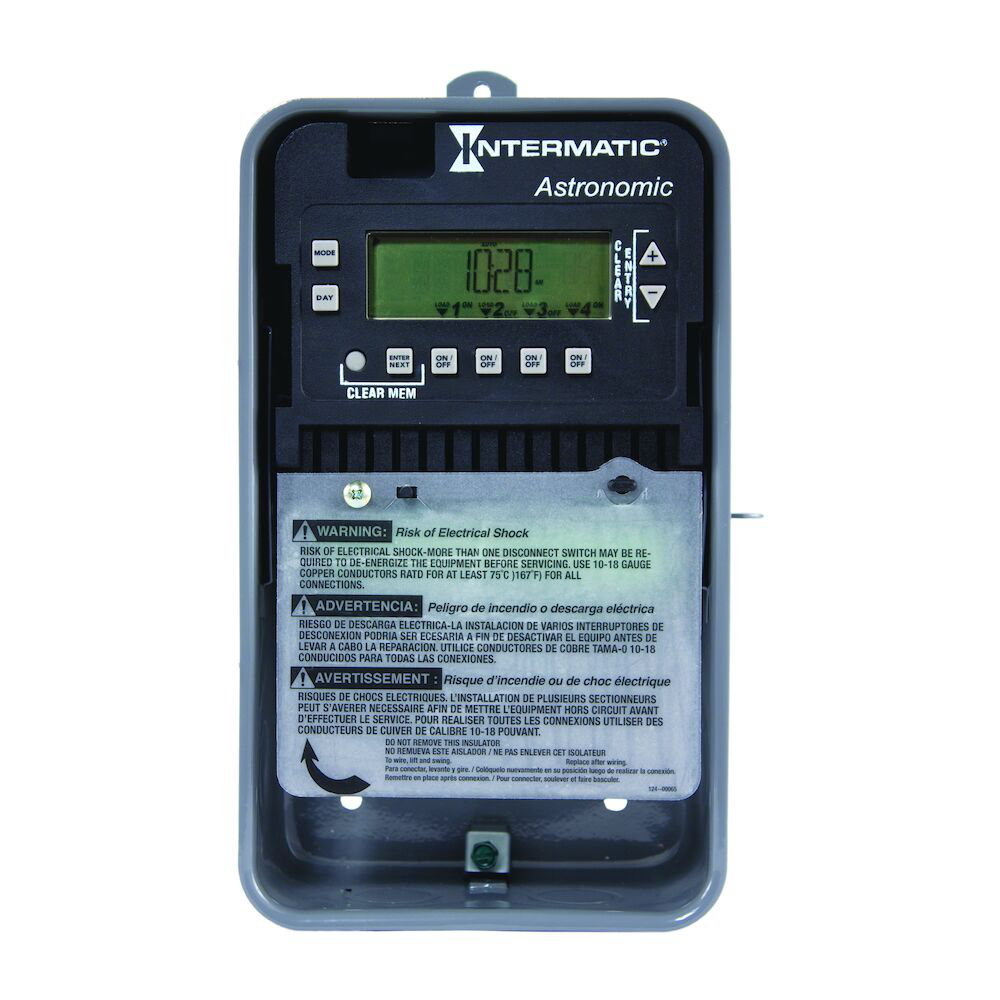

Astronomic 7-Day 4-Circuit Electronic Control, 120-277 VAC, 4-SPST, Outdoor Metal Enclosure

Astronomic 7-Day 4-Circuit Electronic Control by Intermatic - Outdoor Lighting Solutions

The Intermatic ET8415CR is a 4-circuit, 7-day Astronomic time switch designed for precise load switching in outdoor lighting and electrical control applications. It supports independent programming for each day of the week, enabling flexible scheduling for varied load demands. This device is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable control solutions with advanced timing capabilities.

Specifications

• Manufacturer Part #: ET8415CR
• Input Voltage Range: 120-277 VAC, 50/60 Hz
• Number of Circuits: 4
• Switch Type: 4xSPST; 2xDPST
• Maximum Power Consumption: 7 W
• Minimum ON/OFF Time: 1 minute
• Maximum ON/OFF Time: Indefinite
• Maximum ON/OFF Operations: 56
• Setpoint Program Count: 56
• Operation Mode: 7-day Astronomic
• Daylight Savings Adjustment: Automatic
• Backup Type: 100-hour Supercapacitor (battery-free)
• Enclosure Type: Lockable Type 3R outdoor metal enclosure
• Dimensions (H x W x D): 10.125 x 6.5 x 3.625 inches
• Wire Size: #14 AWG minimum to #8 AWG maximum
• Operating Temperature Range: -40 ¬∞F to 104 ¬∞F (-40 ¬∞C to 40 ¬∞C)
• Country of Origin: Mexico
• Certifications: cULus, Title 20 compliant, California Proposition 65 Lead
• Shipping Weight: 3.762 lbs

Features

• Independent 7-day programming with 28 ON and 28 OFF events, customizable per circuit and day
• Supports up to 8 Astronomic events for dusk/dawn control
• Automatic daylight saving time correction without user intervention
• Temporary and permanent manual override options
• Configurable outputs accommodate various voltages and applications
• 100-hour supercapacitor backup eliminates the need for batteries
• Auto-voltage operation from 120 to 277 VAC
• Lockable outdoor metal enclosure protects against vandalism and unauthorized access
