AT-6010, Wire Tracer Kit

AT-6010, Wire Tracer Kit - Advanced Wire Tracing Solutions

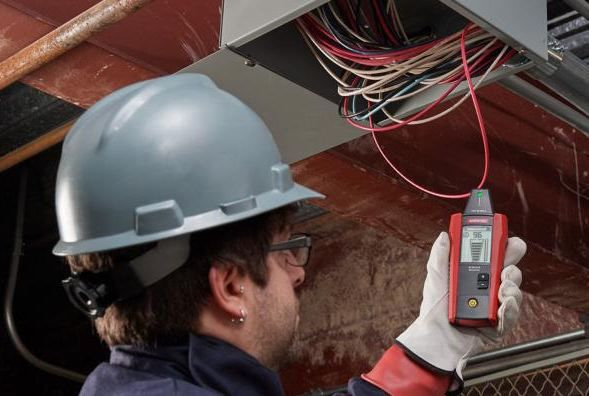

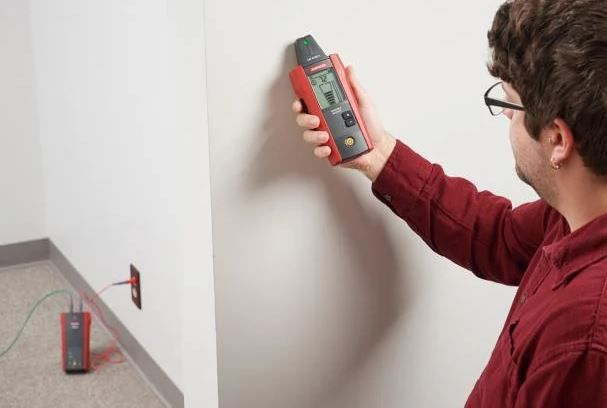

The AT-6010 Wire Tracer Kit is designed for precise tracing and identification of energized and de-energized wires in residential, commercial, and industrial electrical systems. It is ideal for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers who require reliable tools for wire tracing, breaker identification, and fault location. This kit supports tracing through various applications including GFCI-protected circuits, metal and non-metallic conduits, underground wires, and bundled cables.

Specifications

• Measurement Category: CAT III 600 V AC/DC
• Operating Voltage: 0 to 600 V AC/DC (Receiver and Transmitter)
• Transmitter Frequencies: 6.25 kHz (Energized), 32.768 kHz (De-Energized)
• Receiver Frequencies: 6.25 kHz (Energized), 32.768 kHz (De-Energized)
• Display Size (Receiver): 2.5 inch Segment LCD, Black and White
• Operating Temperature: -4 to 122 °F (-20 to 50 °C)
• Enclosure Rating: IP52 (Receiver), IP40 (Transmitter)
• Drop Test: 3.28 feet (1 meter) for Receiver and Transmitter
• Power Supply: Receiver (4) AA Alkaline Batteries, Transmitter (8) AA Alkaline Batteries
• Weight: 4.5 lbs (total kit weight)
• Dimensions:
  • Receiver: 7.2" L x 2.95" W x 1.69" H
  • Transmitter: 7.2" L x 3.66" W x 1.97" H
• Certifications: CSA (Canada and US), CE, C-Tick, IC

Features

• Dual-mode transmitter operates on energized (6.25 kHz) and de-energized (32.768 kHz) circuits up to 600 V AC/DC
• Receiver detects and displays signal strength with numeric readout, bar graph, and audible beep
• Separate ground connection method to avoid signal cancellation for accurate wire tracing
• Loop mode for tracing closed loop de-energized circuits, pinpointing shorts, and grounded wires

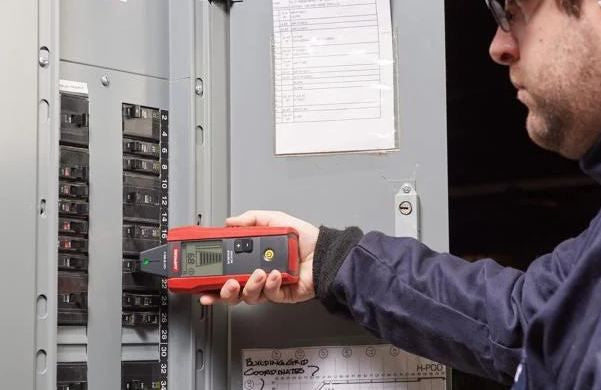

• High signal mode recommended for most wire tracing including breaker location
• Tip sensor with alignment groove for precise wire tracing and breaker identification
• IP52 rated receiver for dust and water resistance suitable for field use

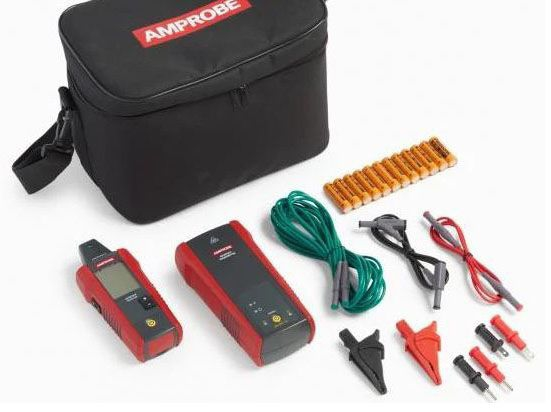

• Includes test lead and accessory kit, soft carrying case, and user manual
• Low battery indication and easy battery replacement for uninterrupted operation
• Drop tested to 3.28 feet for durability on job sites
