AT-7030, Wire Tracer Kit

AT-7030 Wire Tracer Kit – Advanced Wire Tracing Solutions

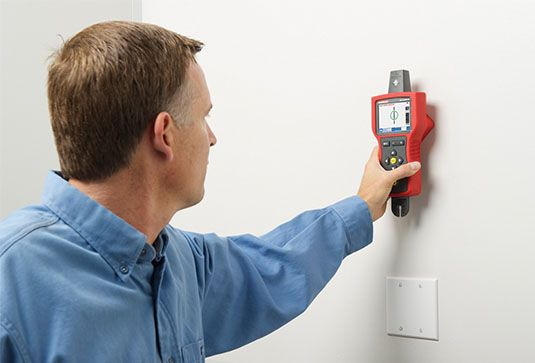

The Fluke AT-7030 Wire Tracer Kit is a professional-grade electrical testing tool designed for precise wire tracing and breaker identification in residential, commercial, and industrial electrical systems. This kit includes the AT-7000-R Receiver with patented Smart Sensor technology and Tip Sensor, and the AT-7000-T Transmitter with multiple frequency and power modes. Ideal for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, the AT-7030 enables accurate tracing of energized and de-energized wires within walls, floors, ceilings, and conduits.

Specifications

• Manufacturer: Fluke
• Model Number: AT-7030
• Receiver Display: 3.5 in TFT LCD full-color display
• Transmitter Display: Color TFT LCD
• Operating Voltage Range: 30 to 300 V AC/DC (energized mode), 0 to 30 V AC/DC (de-energized mode)
• Frequency Modes: 6 kHz for energized circuits, 33 kHz for de-energized circuits
• Power Modes: High, Low (precision), Clamp
• Signal Clamp (SC-7000): Included for inducing signals on wires without bare conductor access
• Non-Contact Voltage Detection: 90-600 V AC (Receiver)
• Measurement Category: CAT IV 600 V (Receiver), CAT IV 300 V (Transmitter)
• Operating Temperature: 0 to 120˚F (-17.77˚C to 49˚C)
• Dimensions: Receiver 10.92 x 4.43 x 2.55 in (27.75 x 11.25 x 6.48 cm), Transmitter 8.5 x 4 x 2.2 in (21.59 x 10.16 x 5.59 cm)
• Weight: Kit weight approximately 10.3 lbs (4.67 kg)
• Battery: Receiver uses 4x AA alkaline batteries; Transmitter uses rechargeable Li-ion battery (7.2 V, 2.2 Ah)

Features

• Smart Sensor™ technology provides precise wire location and orientation on energized wires with a large, bright full-color TFT LCD display
• Tip Sensor enables tracing in tight spaces, corners, junction boxes, and precise breaker/fuse identification on energized and de-energized circuits

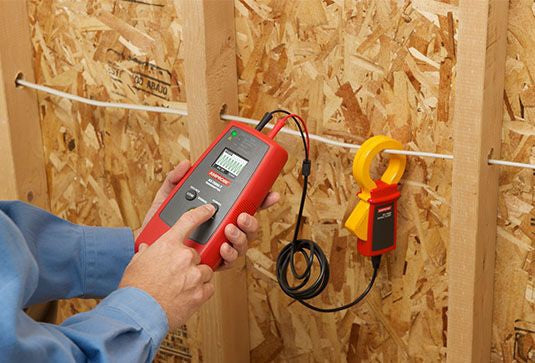

• Signal Clamp (SC-7000) accessory allows signal induction on wires without access to bare conductors, improving tracing accuracy
• Three power modes: High for normal circuits, Low for precision tracing, and Clamp mode for boosted signal via clamp attachment
• Two automatically selected frequency modes optimize tracing on energized (6 kHz) and de-energized (33 kHz) circuits

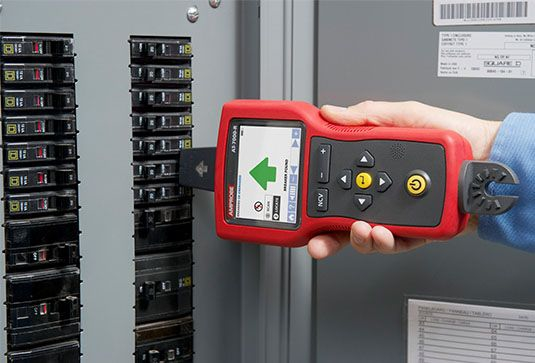

• Breaker mode with Scan and Locate feature identifies the correct breaker or fuse, reducing false positives common in older tools
• Non-contact voltage detection (NCV) for energized wire detection without direct contact
• Embedded help screens simplify setup and operation, reducing errors
• Durable, ergonomic design with rubber overmolded enclosure for reliable field use

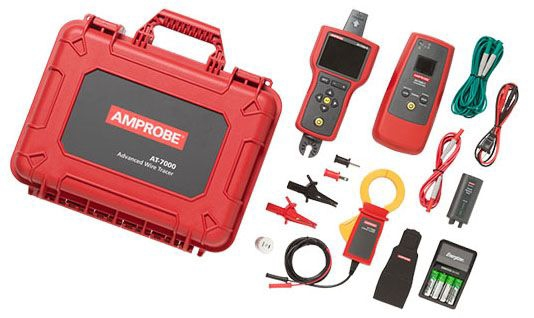

• Includes comprehensive test lead and accessory kit, hard carrying case, and magnetic hanger for convenient use and transport
