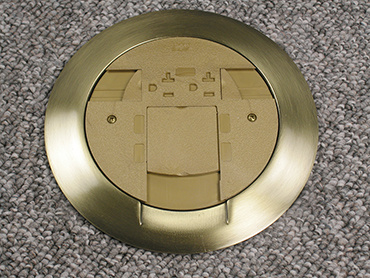

AV3ATC Assembled Poke-Thru Device

AV3ATC Assembled Poke-Thru Device – Flush Style Poke-Thru Solutions

The AV3ATC Assembled Poke-Thru Device by Wiremold is designed to deliver power, communication, and A/V services directly to workstations in open space, above-grade floor environments. It is suitable for installation on tile, carpet, or wood-covered floors, making it an ideal solution for office buildings, airports, malls, libraries, schools, and other commercial spaces. This device integrates TopGuard‚Ñ¢ protection, exceeding UL scrub water exclusion requirements to prevent water, dirt, and debris ingress into both power and communication compartments. As a trusted product from a leading electrical distributor and switchgear supplier, it supports seamless connectivity for voice, data, audio, and video applications.

Specifications

• Product Weight: 6.6190 lbs
• Cable Entry: 0.75 in trade size
• Construction: Assembled
• Country of Origin: Mexico
• Manufacturer: Wiremold
• Manufacturer Part #: AV3ATCAB
• UPC: 786564015642
• Hole Size: 4" (102mm) diameter core drilled hole (from AV3 Series specs)
• UL Fire Classification: 1-, 1 1/2-, and 2-hour rated floors
• Capacity: 2 gangs with (1) 20A duplex receptacle and (3) single width Extron MAAP devices or (4) ports of communications
• Power Feed Channels: (3) #12 AWG, 3/4" trade size
• Communications Feed Channels: (6) Cat 6A/Channel, 1 1/4" trade size/channel
• Cover Size: 8 1/4" (210mm) diameter
• Cover Colors: Black, Brass, Aluminum, Gray
• Approved Floor Coverings: Carpet, Tile & Wood
• Floor Covering Thickness: Minimum 1/8" (3.2mm), Maximum 3/4" (19.1mm)

Features

• TopGuard‚Ñ¢ Protection: Integral design preventing water, dirt, and debris from entering power and communication compartments, exceeding UL scrub water exclusion standards.
• Flush Style Design: Suitable for tile, carpet, and wood-covered floors with a beveled trim flange to meet ADA Accessibility Guidelines.
• Prewired 20A Duplex Receptacle: Can be wired as standard or isolated ground with compatibility for Extron MAAP mini architectural adapter plates (Extron devices sold separately).
• Communication Connectivity: Includes Ortronics TracJack and Series II mounting bezels, plus Wiremold Open System bezels and inserts for versatile voice, data, audio, and video integration.
• Installation: ‚ÄúStep-on-it‚Äù quick installation design without need for additional fasteners or second installer.
• UL Listed & Fire Classified: Complies with U.S. and Canadian safety standards for tile, terrazzo, carpet, and wood floors.
• Suitable for Use in Air Handling Plenums: Compliant with NEC Section 300-22(C).
• Applications: Ideal for new or retrofit construction in commercial, hospitality, education, healthcare, retail, and entertainment vertical markets.
