BHH250P16PSQ

BHH250P16PSQ High Bay Lighting Fixture

The BHH250P16PSQ is a high bay lighting fixture designed for indoor use above 25 feet. It features a 250-watt Pulse Start Metal Halide lamp with a prismatic refractor for precise light distribution. This fixture is suitable for electrical distributors and lighting solutions providers looking for reliable high bay lighting with efficient performance. The heavy die-cast aluminum housing and clear acrylic Lexalite Reflexor prismatic refractor ensure durability and long-term resistance to yellowing. The fixture includes a quad tap ballast factory wired for 277V and is UL listed for damp locations, making it a practical choice for wire and cable and switchgear suppliers serving industrial and commercial environments.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: BHH250P16PSQ
• Input Wattage: 278 watts
• Lumens: 23,800 lumens
• Efficacy: 85 lumens per watt
• Product Weight: 23.3 lbs
• Housing: Heavy die-cast aluminum with powder coat finish
• Junction Box: Heavy duty stamped steel
• Plate: Die-cast plate tapped 3/4" NPS for 3/4" pipe or die cast hook
• Socket: Mogul base open rated
• Ballast: Quad tap, factory wired for 277V
• UL Listed for 65°C ambient temperature, damp locations
• Start-up Time: 3 - 5 minutes
• Restrike Time: 10 - 20 minutes

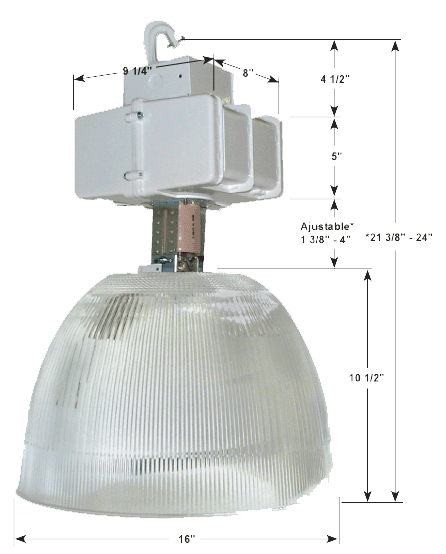

• Dimensions: 16" diameter reflector, overall height adjustable between 21 3/8" and 24"

Features

• Pulse Start Metal Halide lamp for increased lamp life, lumen maintenance, and color uniformity
• Clear acrylic Lexalite Reflexor prismatic refractor with seven adjustable light distribution patterns
• Multi-position adjustable reflector bracket for precise optical control
• Removable steel wiring compartment door for quick and easy mounting
• Supplied with safety hook and 3-foot cord for secure installation
• CSA Certified for indoor locations
• Complies with 2005 NEC code for open rated lamp and socket
• Buy American Act compliance available upon request

Downloads & Links

• Instructions
• Spec Sheet
