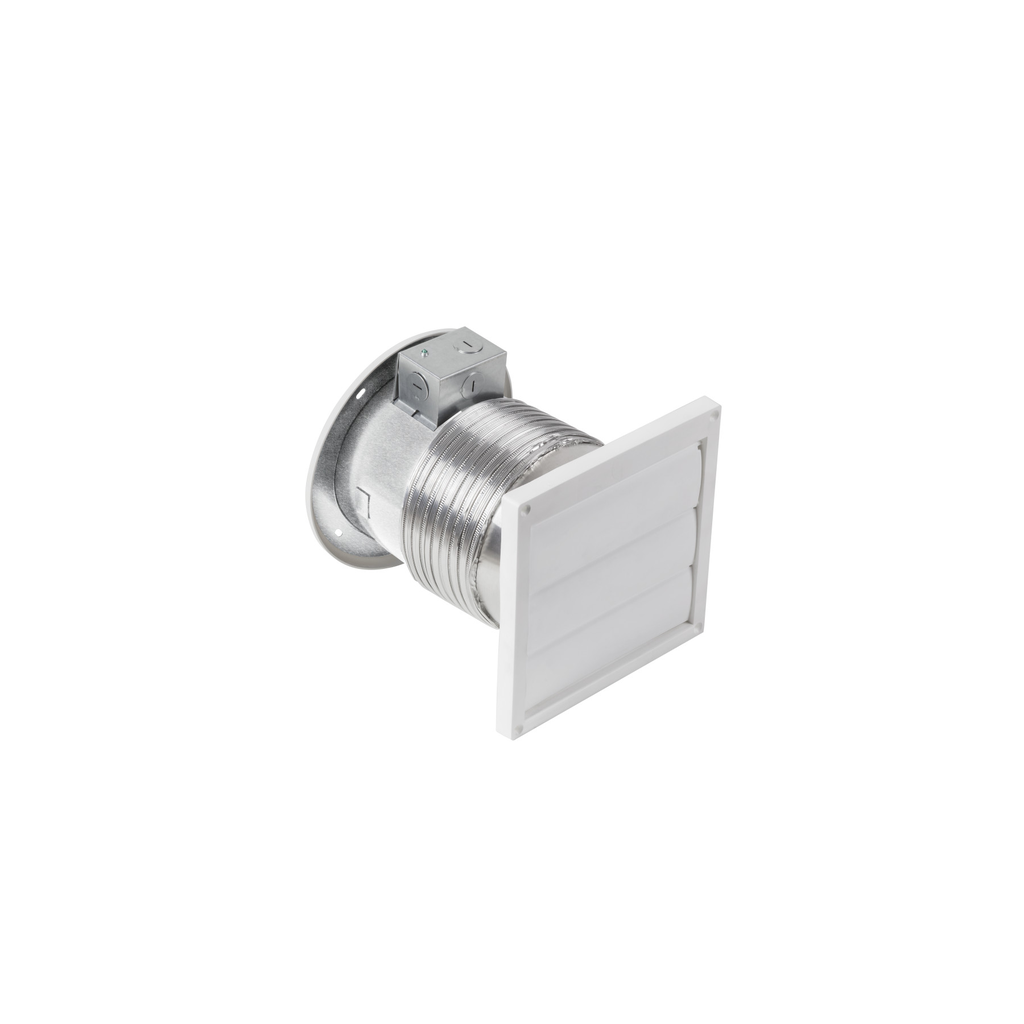

Broan® 70 CFM Through-Wall Ventilation Fan

Broan® 70 CFM Through-Wall Ventilation Fan – Exhaust Fan for Garage and Utility Spaces

The Broan® 70 CFM Through-Wall Ventilation Fan is designed to provide effective ventilation for rooms up to 65 sq. ft., including one-car garages, kitchens, laundry rooms, and recreation rooms. This fan offers a durable solution to remove excess heat, humidity, odors, and smells, making it suitable for residential applications requiring reliable air exchange. Its galvanized steel housing ensures long-lasting performance, while the built-in exterior wall cap with bird screen reduces installation time with no ductwork needed. Compatible with Broan-NuTone wall controls, including humidity or motion sensing options, this fan supports automatic operation and enhanced user control. Ideal for electrical distributors and lighting solutions providers offering ventilation products for wire and cable or switchgear supplier customers.

Specifications

• Air Delivery: 70 CFM

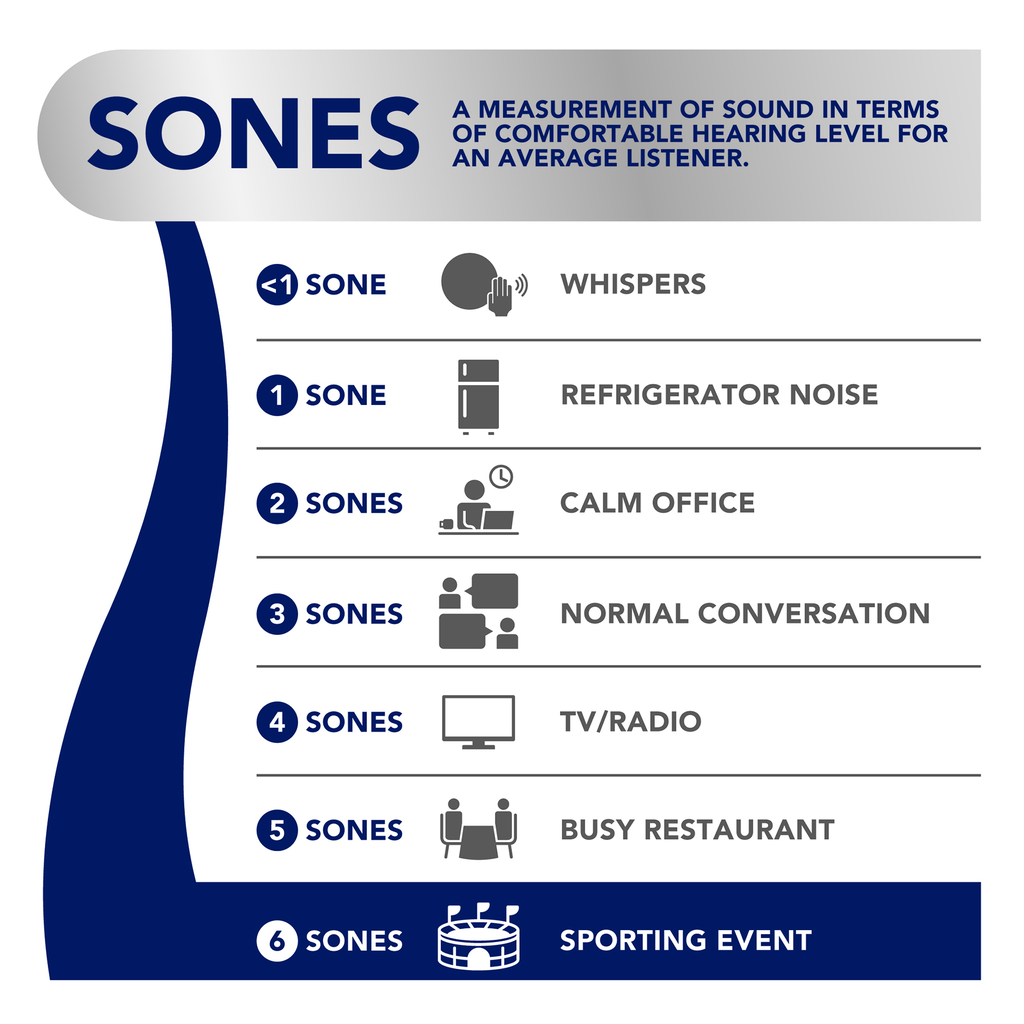

• Sound Level: 6.0 Sones
• Amperage: 0.7 amperes
• Voltage: 120/127 V
• RPM: 2660
• Housing Material: Galvanized Steel
• Color: White
• Dimensions: 8 in. Width x 8 in. Length x 1 in. Height
• Duct Shape: Round
• Installation: Wall Mounted
• Country of Origin: Mexico
• UL Listed and HVI Certified

Features

• Durable galvanized steel housing for superior protection and longevity
• Built-in exterior wall cap with integral bird screen reduces installation time
• Plug-in, thermally protected, permanently lubricated motor for maintenance-free operation
• Quiet, durable polymeric blade with motor RPM not exceeding 2600

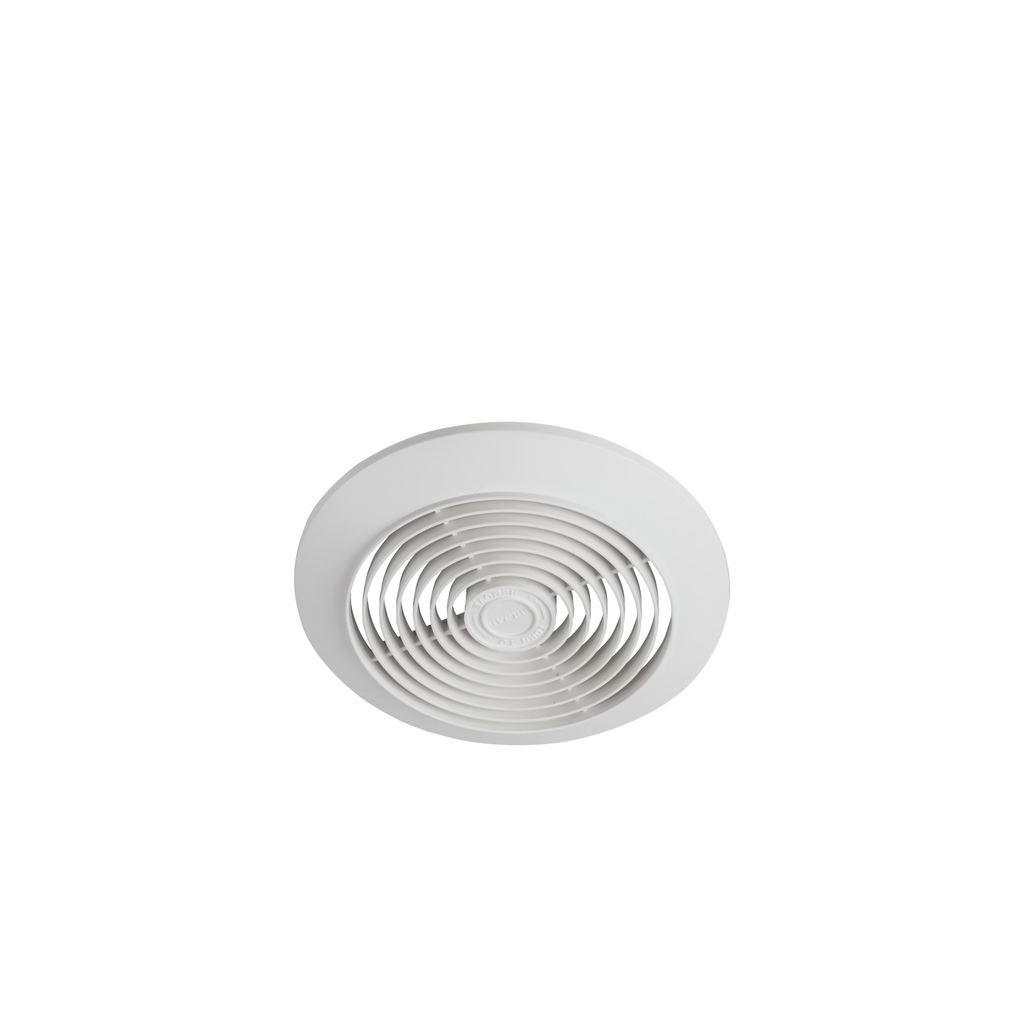

• Spin-on white polymeric interior grille complements any decor
• Can be installed in exterior walls from 5¬º" to 10" thick; adjustable duct included for thicker walls
• Compatible with Broan-NuTone wall controls for manual or automatic operation (controls sold separately)
• Designed for spot ventilation near work benches, garbage cans, vehicles, or lawn equipment
• Suitable for ventilating excess heat, humidity, and odors in single-family residential garages and utility rooms

Downloads & Links

• Spec Sheet
• Installation Guide
