Button 120V 2000W 1800VA 600VA LED Photocontrol

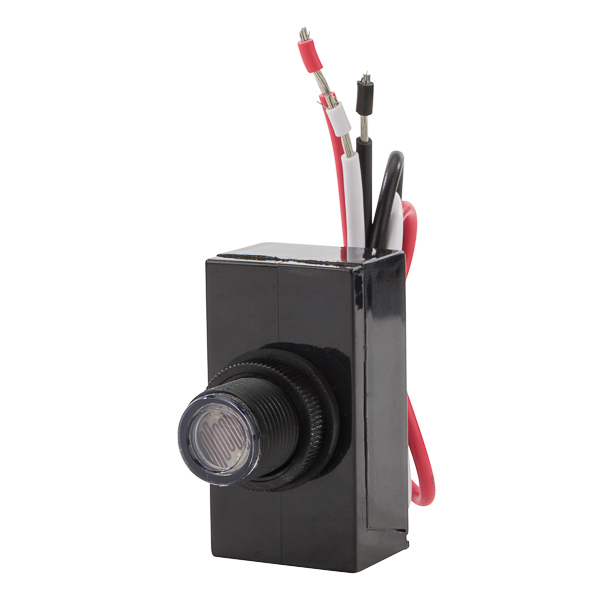

This Button Flush Mount Photocontrol is designed for reliable lighting control in outdoor applications such as pole lanterns, lawn lighting, and walkways. It is suitable for electrical distributors and lighting solutions providers looking for a durable sensor that operates at 120V and supports tungsten, ballast, and LED loads. The device features a 1/2" cadmium sulphide photocell and offers precise ON/OFF switching based on ambient light levels, making it an efficient component for wire and cable systems and a dependable product for switchgear suppliers.

Specifications

• Voltage: 120V AC, 50-60 hertz
• Load Ratings: 2000W Tungsten, 1800VA Ballast, 600VA LED
• Turn ON/Turn OFF: ON at 1 to 5 foot-candles, OFF at 3 to 15 foot-candles
• Frequency: 50-60 hertz
• Operating Temperature Range: -40 to 140 degrees Fahrenheit
• Photocell: Conformal coated cadmium sulphide, 1/2" diameter
• Contacts: Normally closed (fail ON position)
• Lead Wires: Three color-coded, minimum 9" wire leads, #16 AWG rated for 105°C
• Power Consumption: Averages under 1 watt
• Product Weight: 0.1 lbs
• Manufacturer Part Number: 3000
• Fail Mode: ON
• Warranty: 5 years

Features

• Flush mount installation through a .6875” hole in post lantern or lighting fixture with supplied gasket and nut
• Weather-resistant molded Lexan® housing with ultrasonically welded seams for durability
• Delay feature up to two minutes to prevent false switching from transient light sources such as passing vehicles or lightning
• Energy savings compatibility with screw base CFLs
• Adjustable light sensor with turn ON/OFF thresholds optimized for outdoor security and safety lighting
• Recommended for use in outdoor environments with a wide operating temperature range
• Installation recommended by licensed electricians with detailed wiring diagrams for safe and proper connection
