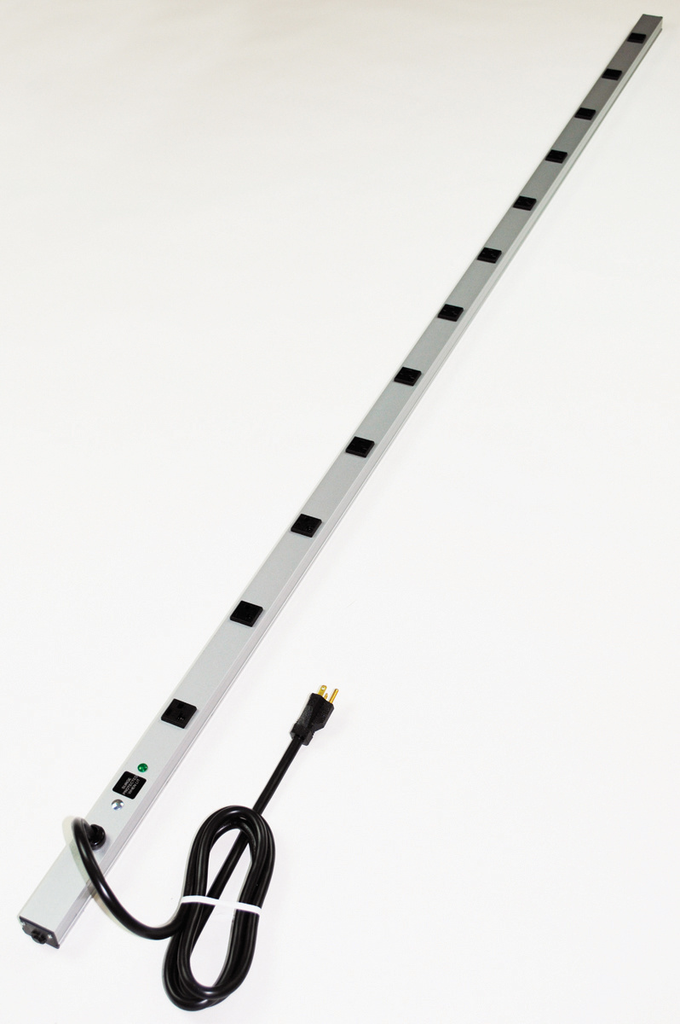

CabinetMate Plug-In Outlet Center Unit / 120V/20A / 77" long / 12 O/L / 6' cord / Computer Grade Surge

CabinetMate Plug-In Outlet Center Unit / 120V/20A / Computer Grade Surge Protector

The Wiremold CabinetMate Plug-In Outlet Center Unit provides advanced surge protection designed for communication closets, racks, and cabinet applications. It is part of the CabinetMATE Surge Protector Series, engineered to dissipate and divert excess voltage to safeguard critical electronic and communication equipment. This unit supports 120V/20A electrical systems and is suitable for use by electrical distributors and switchgear suppliers seeking reliable surge protection solutions integrated into wire and cable management systems.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 7712BCS20R
• Voltage: 120V
• Current Rating: 20A
• Length: 77.0 in
• Height: 1.19 in
• Width: 1.5 in
• Mounting: Yes
• Product Weight: 5.66 lbs
• Country of Origin: Mexico
• UPC: 786776052718
• Surge Protection Circuitry: Single Stage
• UL1449 Voltage Protection Rating: 600 Volts
• Maximum Surge Current: 36,000 Amps (12,000 Amps L-N, 12,000 Amps L-G, 12,000 Amps N-G)
• Noise Reduction: +35 dB
• Response Time: Less than 1 nanosecond
• Product Warranty: 5-Year

Features

• Provides surge protection on all three modes (Line-Neutral, Line-Ground, Neutral-Ground) with thermal protection on each line.
• Protects sensitive communications equipment from surges caused by external and internal sources such as AC lines, telephone and communication lines, fluorescent lighting, electric motors, HVAC equipment, and office machines.
• Compact, low-profile aluminum housing measuring 1 1/2" x 1 3/16", suitable for rack and cabinet mounting.
• Equipped with 12 outlets with T-slots for versatile device connections.
• Includes a 6-foot cord with a NEMA 5-20P plug, rated appropriately for 20A load requirements.
• Protection indication light to show the status of the unit.
• Resettable circuit breaker for overload protection.
• UL and cUL Listed to UL1363 and UL1449, Third Edition standards.
• Connected equipment warranty up to $30,000 included.
